Design points
● silver plated copper conductor
● primary pocess optimized transmission characteristics by unique skin-foam-skin technology
● longitudinal pair shielding
● pair drain position: dual drain pair design

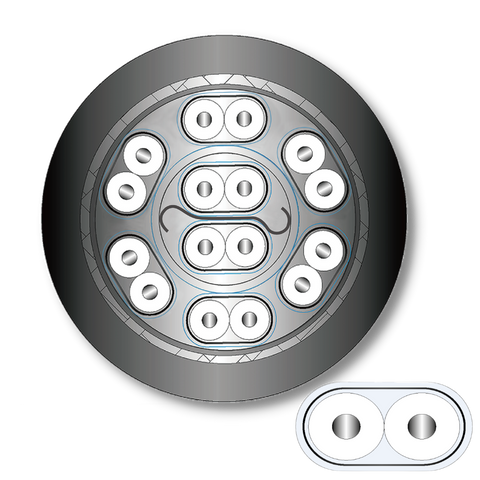

● available as “no drain” version with optimised outer diameter
● available in 2,4 and 8 pair configuration
● available in AWG 30 to 26
● different jacket colour options
●suck-out free performance up to 40 GHz

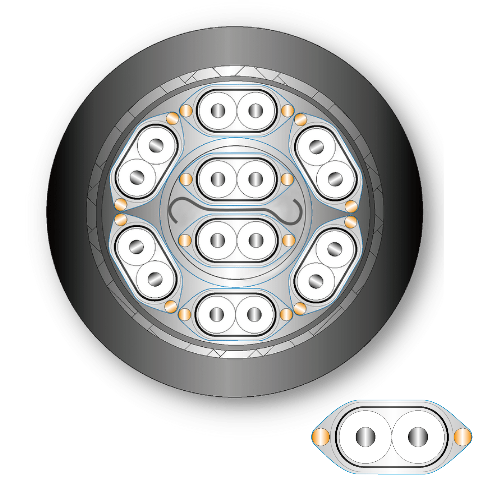

Construction
| AWG
| Insulation
| Double/Single Drain wire
| Nominal OD （mm）
| Flammability
| Electrical characteristics |
Impedance
| Attenuation |
| @13.28GHz |
| 8P | 30 | S-F-S PE | Double | 6.70 | VW-1 | 100 | 4.30 dB/m |
| 28 | S-F-S PE | Double | 7.90 | VW-1 | 100 | 3.90 dB/m |
| 26 | S-F-S PE | Double | 8.50 | VW-1 | 100 | 3.00 dB/m |
Construction
| AWG
| Insulation
| Double/Single Drain wire
| Nominal OD（mm）
| Flammability
| Electrical characteristics |
Impedance
| Attenuation |
| @13.28GHz |
| 2P | 30 | S-F-S PE | Double | 4.30 | VW-1 | 100 | 4.30 dB/m |
| 28 | S-F-S PE | Double | 4.60 | VW-1 | 100 | 3.90 dB/m |
| 26 | S-F-S PE | Double | 5.60 | VW-1 | 100 | 3.00 dB/m |
Application
