Design points
● silver plated copper conductor
● Polyolefin/FEP insulation
● longitudinal pair shielding
● pair drain position: single drain pair design
● available in 2,4 ,8 and 16 pair configuration
● available in AWG 32 to 26
● different jacket colour options
● suck-out free performance up to 30 GHz

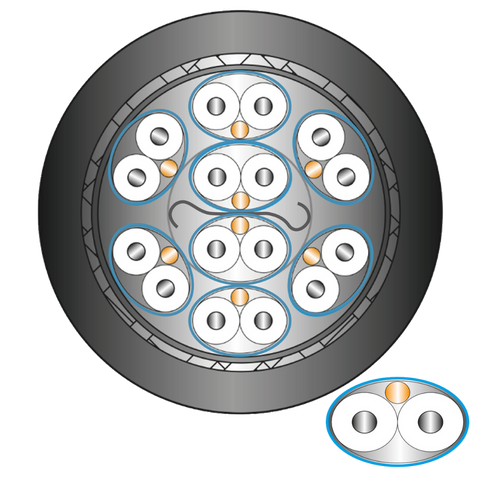

Construction
| AWG
| Insulation
| Double/Single Drain wire
| Nominal OD（mm）
| Flammability
| Electrical characteristics |
Impedance
| Attenuation |
| @12.89GHz |
| 8P | 30 | Solid PE | Single | 6.90 | CL2/VW-1 | 100 | 4.60 dB/m |
| 28 | Solid PE | Single | 8.20 | CL2/VW-1 | 100 | 3.90 dB/m |
| 26 | Solid PE | Single | 9.30 | CL2/VW-1 | 100 | 3.10 dB/m |
Construction
| AWG
| Insulation
| Double/Single Drain wire
| Nominal OD（mm）
| Flammability
| Electrical characteristics |
Impedance
| Attenuation |
| @12.89GHz |
| 2P | 30 | Solid PE | Single | 4.50 | CL2/VW-1 | 100 | 4.60 dB/m |
| 28 | Solid PE | Single | 5.10 | CL2/VW-1 | 100 | 3.90 dB/m |
| 26 | Solid PE | Single | 5.60 | CL2/VW-1 | 100 | 3.10 dB/m |
Application
