Heroscable for single pair wire

Design points

● frequency range up to 56 GHz implemented

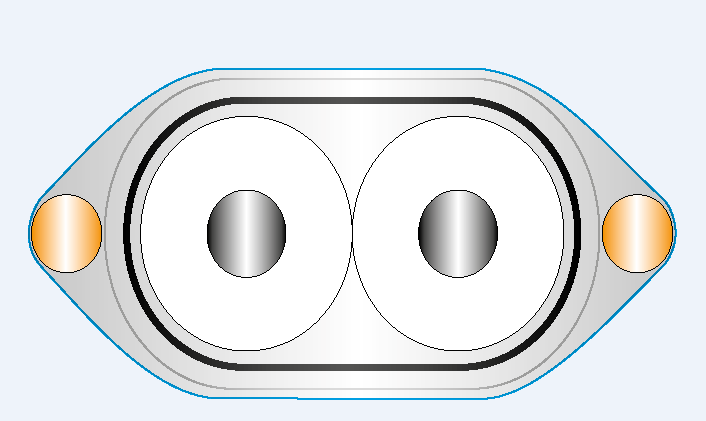

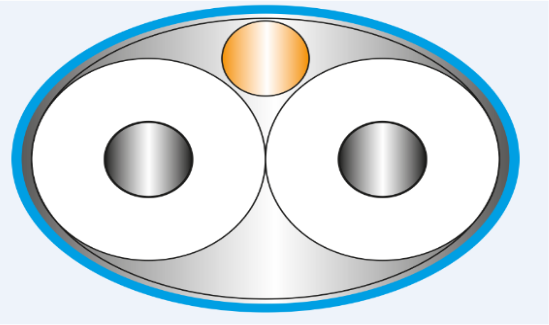

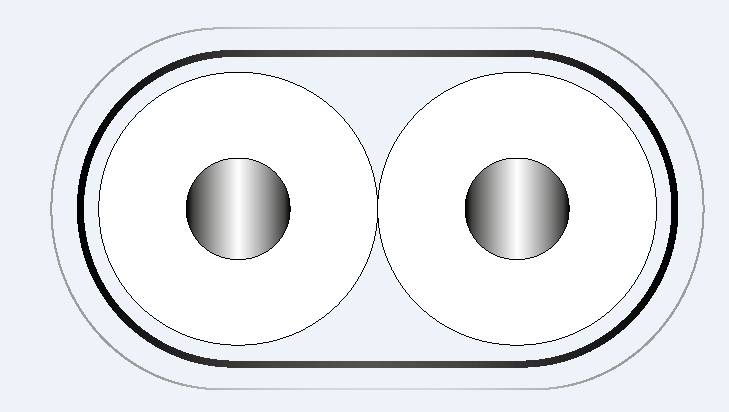

● available in different drain wire options: Dual side drains, single or no drain
● wrapped pair shield design and longitudinal design possible
● impedance 85, 90 and 100 ohm
● available in different AWG sizes
Detail

Design points

● frequency range up to 56 GHz implemented

● available in different drain wire options: Dual side drains, single or no drain

● wrapped pair shield design and longitudinal design possible

● impedance 85, 90 and 100 ohm

● available in different AWG sizes



Application

   SAS3.0   SAS4.0   Pcie3.0   Pcie4.0   Pcie5.0   56Gbit/s   Back-plane         112Gbit/s   Back-plane
